MKFV / INRV
The automatically cleanable extraction and filtering device for extraction volume max. 640 – 3300 m3 per hour
MKFV / INRV –
Application
- Dedusting
- Welding lasers, cutting lasers
- Welding fumes
MKFV / INRV

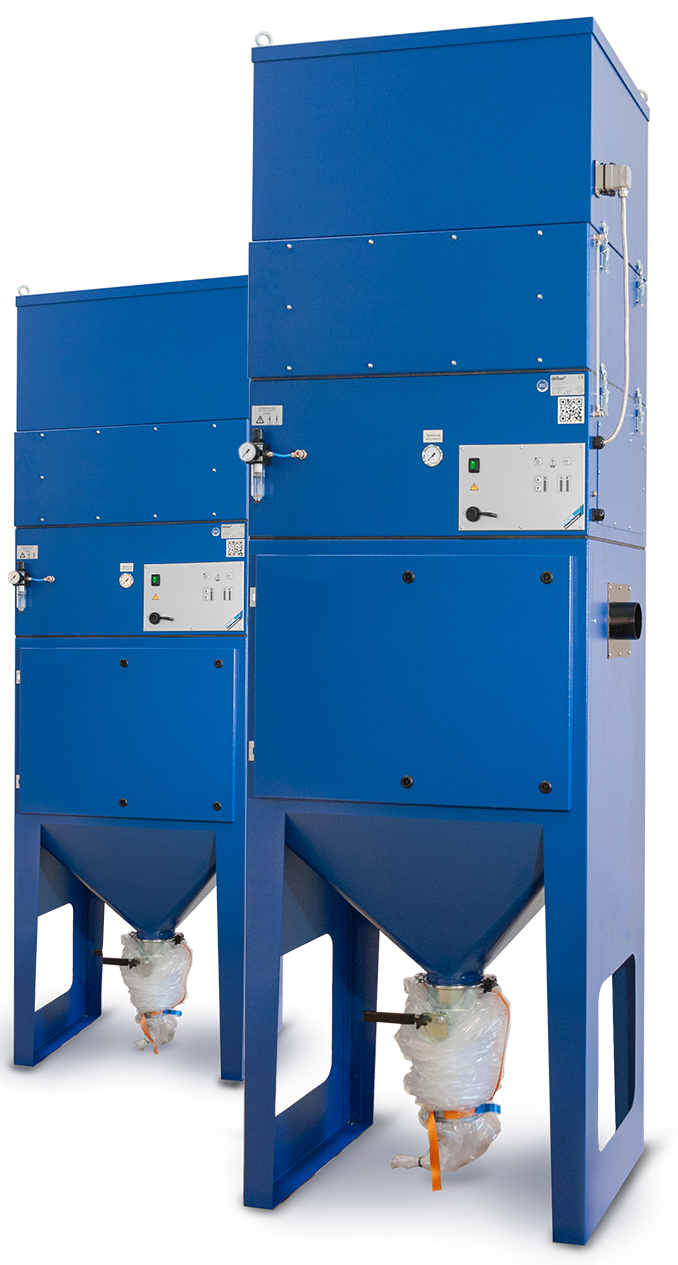

The two dust suckers in L/XL format
Air volume max. without FA (m³/h): 640 – 3300 m³/h
MKFV / INRV –
Features
- Pollution-free dust removal through integrated dust collection device
- For the pre-separation of particularly large quantities of dusts
- Compact, for limited space requirements
- High filter capacity, can be easily removed if required
- Optimum tightness due to a special clamping system
- Easy to operate and maintain
- Central system e.g. for several welding or inscription lasers
MKFV / INRV –
Handling
- Stationary use
- Compact in size, thus minimal space requirement
| Model | Air volume max. without FA (m³/h) | Negative pressure max. (Pa) | Electr. connection (V/Hz) | Electr. power (kW) | Sound pressure level 1m (dBA) | Dimensions (mm) | Weight without FA (kg) |
|---|---|---|---|---|---|---|---|
| INRV0640 – 1600 | 300 – 1600 | 6800 | 400V/50 oder 230/50–60 | 2,2 – 4,0 | 67 | 930 x 750 x 2230 | ca. 250 |
| INRV2400 – 3400 | 1000 – 3300 | 8000 | 400V/50 oder 230/50–60 | 5,5 – 7,5 | 78 | 1230 x 750 x 2300 | ca. 320 |
| MKFV0640 | 205 – 640 | 9500 – 20800 | 230V/50–60 | 1,1 – 2,6 | 59 – 70 | 660 x 550 x 1860 | ca. 200 |
