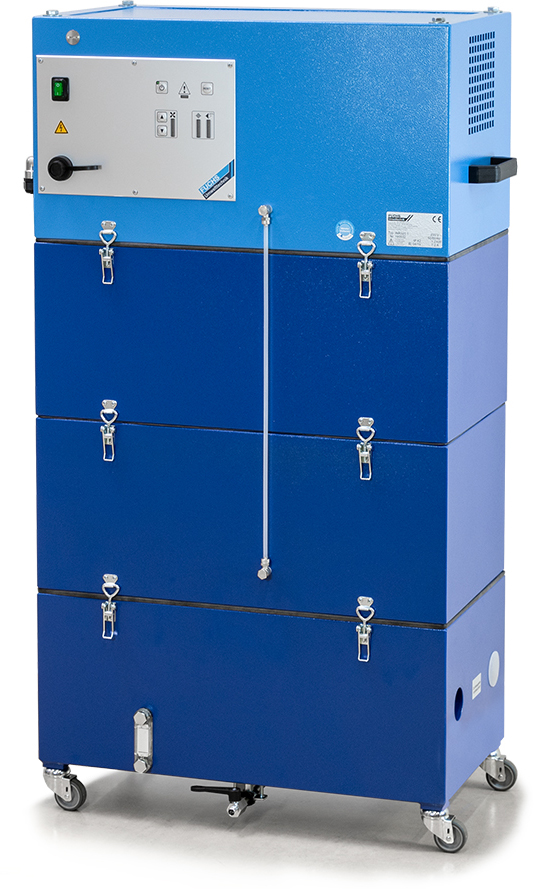

INR320.1
The interchangeable filtering device for extraction volume max. 320 m3 per hour
INR320.1 –
Application
- Oil mist, emulsion mist
- Solvent vapours, adhesive vapours
- Erosion mist
- Inscription lasers, engraving lasers
- Welding lasers, cutting lasers
- Soldering fumes, welding fumes
- Particulate matter, smoke
INR320.1
The INR20‘s little brother
Air volume max. without FA (m³/h): 100 – 320 m³/h
INR320.1 –
Features
- Very versatile range of applications
- Very compact, as oil pre-separator is integrated
- Module Basis MKF model series
- Suitable for 1 or 2 extraction points
- Option: Pump set for pumping off the filtered oil via integrated oil drain cock
INR320.1 –
Handling
- Mobile or stationary use
- Easy to transport and dismantle without tools
| Model | Air volume max. without FA (m³/h) | Negative pressure max. (Pa) | Electr. connection (V/Hz) | Electr. power (kW) | Sound pressure level 1m (dBA) | Dimensions (mm) | Weight without FA (kg) |
|---|---|---|---|---|---|---|---|
| INR320.1 | 100 – 320 | max. 12500 | 230V/50–60 | 1,2 | 67 | 660 x 390 x 1260 | 90 |
