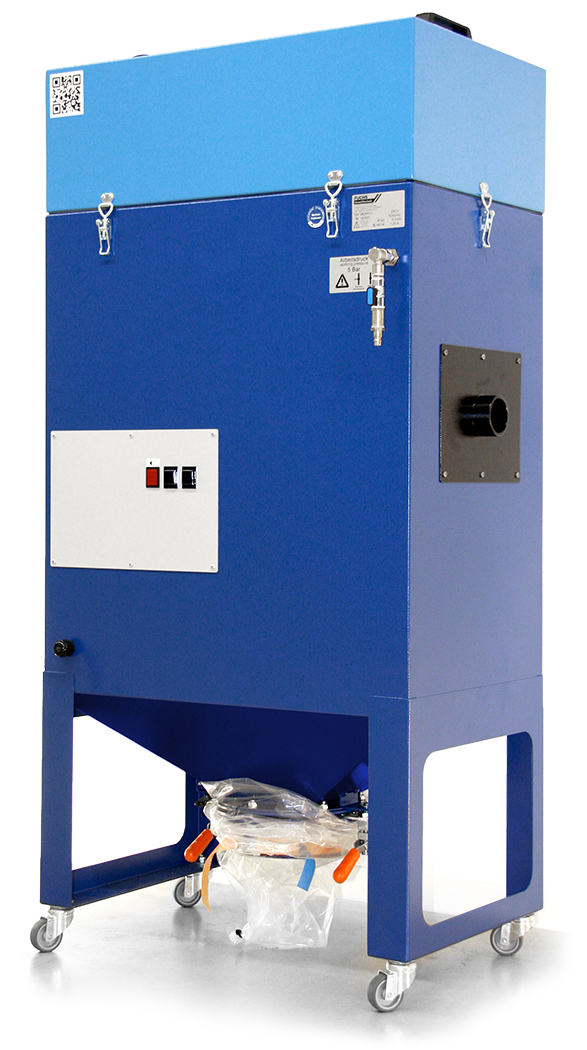

VA2PF
Pre-separator module
VA2PF –
Application
- Smaller welding, cutting and inscription lasers for dry smoke, for example from metals
- Process dusts
VA2PF
The pre-separation module - and dust is a thing of the past
Luftmenge max. ohne FA: 320 – 450 m³/h
VA2PF –
Features
- The new development of the VA2PF pre-filter module for filtering dust emissions in a wide variety of applications
- Due to the automatic cleaning function and the pollution-free removal in PE bags, larger quantities of emissions can be handled easily.
- The streamlined air flow at both dust class M filter cartridges generates a high degree of efficiency and separation.
- Filter equipment: 2 filter cartridges with 3 or 6 m² filter area
- Time-controlled cleaning
- Air requirement per cleaning: 5 litres
VA2PF –
Handling
- Mobile or stationary use
- The unit can be connected on delivery to an existing extraction and filter system and put into operation immediately.
| Model | Air volume max. without FA (m³/h) | Compressed air in bar | Electr. connection (V/Hz) | Extraction ports (mm) | Sound pressure level 1m (dBA) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| VA2PF | 320 – 450 | 3–4 | 230/50–60 | 1 bzw. 2 x NW50 | 62 | 660 x 440 x 1410 | ca. 70 – 80 |
