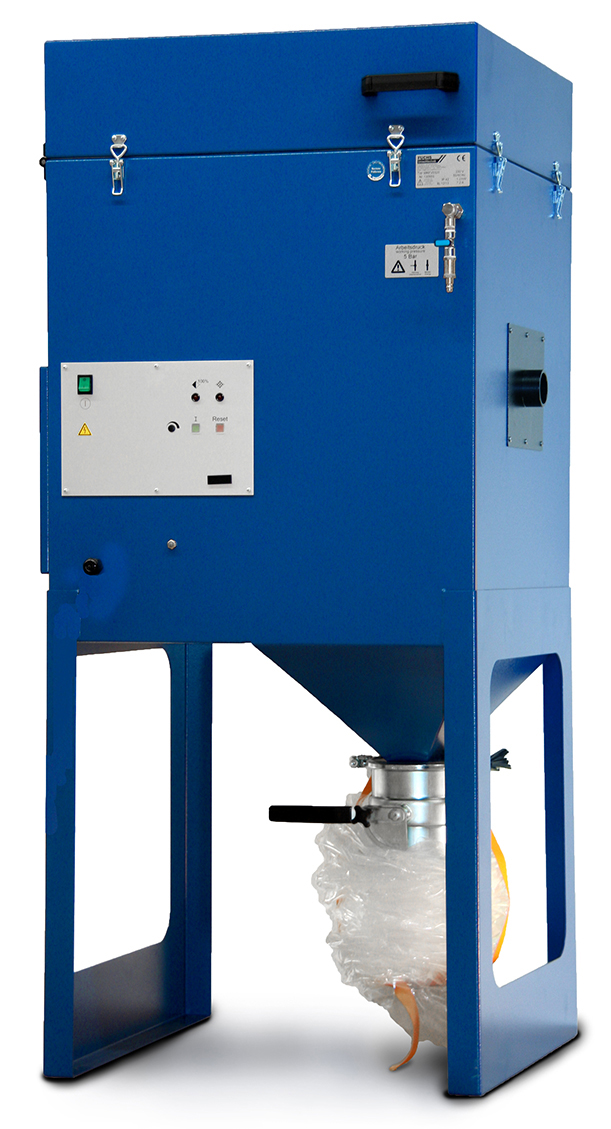

The automatically cleanable extraction and filtering device for extraction volume max. 380 m3 per hour


  • Welding lasers
  • Cutting lasers
  • Central extraction

The volume advantage when even more dust is generated

Air volume max. without FA (m³/h): 320 – 380 m³/h


  • Pollution-free dust removal through integrated dust collection device
  • MKFVA is a compact dust separator with automatic, compressed air-supported filter cleaning for the pre-separation of larger dust quantities
  • Problem-free operation: the automatic filter cleaning enables a very long filter service life
  • Simplified filter replacement due to cover module with folding mechanism
  • The special Fuchs Umwelttechnik clamping system ensures optimum tightness
  • MKFVA is very easy to operate and maintain due to its well thought-out design.
  • The high operational safety is rounded off by reliable monitoring functions
  • LZH-tested


  • Compact and therefore particularly flexible
  • Mobile with optional chassis or for stationary use
Model Air volume max. without FA (m³/h) Negative pressure max. (Pa) Electr. connection (V/Hz) Electr. power (kW) Sound pressure level 1m (dBA) Dimensions (mm) Weight without FA (kg)
MKFVA 320 – 380 12500 – 13000 120/230/400V/50–60 1,1 – 1,4 64 750 x 750 x 1625 150
