INR20
The interchangeable filtering device for extraction volume max. 2400 m3 per hour
INR20 –
Application
- Oil mist, emulsion mist
- Solvent vapours, adhesive vapours
- Erosion mist
- Inscription lasers, engraving lasers
- Welding lasers, cutting lasers
- Soldering fumes, welding fumes
- Particulate matter, smoke

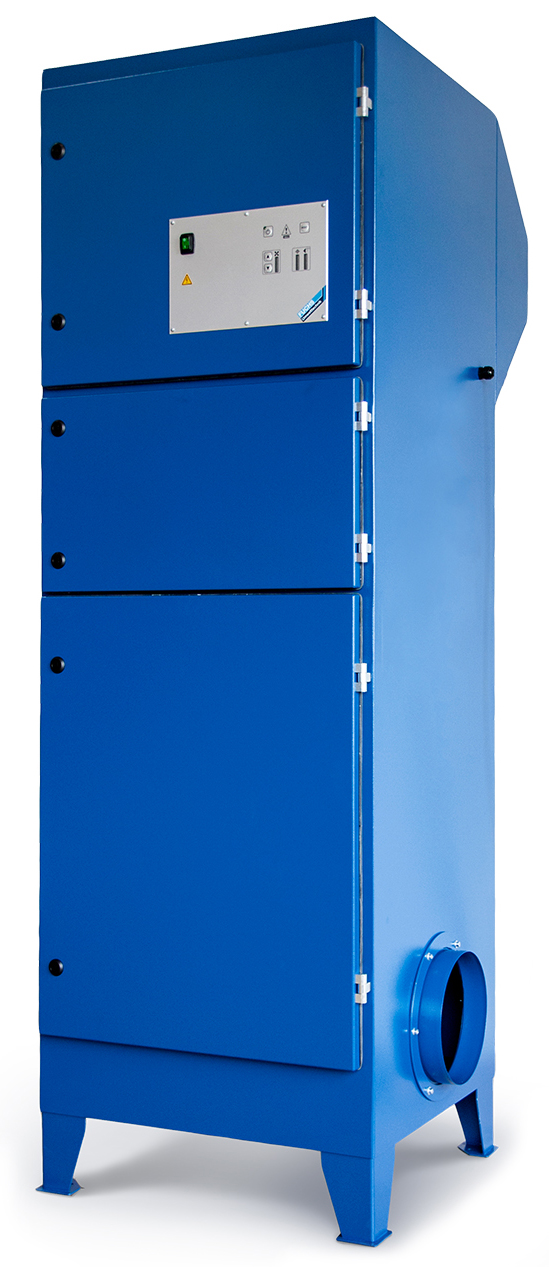

INR20
The big one with built-in pre-separator
Air volume max. without FA (m³/h): 100 – 2400 m³/h
INR20 –
Features
- Very high filter capacity due to multi-stage filter combination
- Integrated pre-separator
- Also suitable for oil or emulsion mist
- Different fans possible depending on the area of application
- Especially low-noise
- Suitable for one or more extraction points
- Different air flow rates are possible
- Ideal for quickly equipping existing workstations
- Option: Pump set for pumping off the filtered oil via integrated oil drain cock
INR20 –
Handling
- INR20 can be installed anywhere with ease, the filtered air remains in the room
| Model | Air volume max. without FA (m³/h) | Negative pressure max. (Pa) | Electr. connection (V/Hz) | Electr. power (kW) | Sound pressure level 1m (dBA) | Dimensions (mm) | Weight without FA (kg) |
|---|---|---|---|---|---|---|---|
| INR20 | 100 – 2400 | 2910 – 9500 | 230/400V/50–60 | 1,1 – 2,6 | 58 – 67 | 660 x 670 x 2100 | 150 |
