LSKA04
Laser protection booth
LSKA04 –
application
- Safety for laser labelling of various small parts on automation lines
- Collection and filtering of accumulating emissions
LSKA04

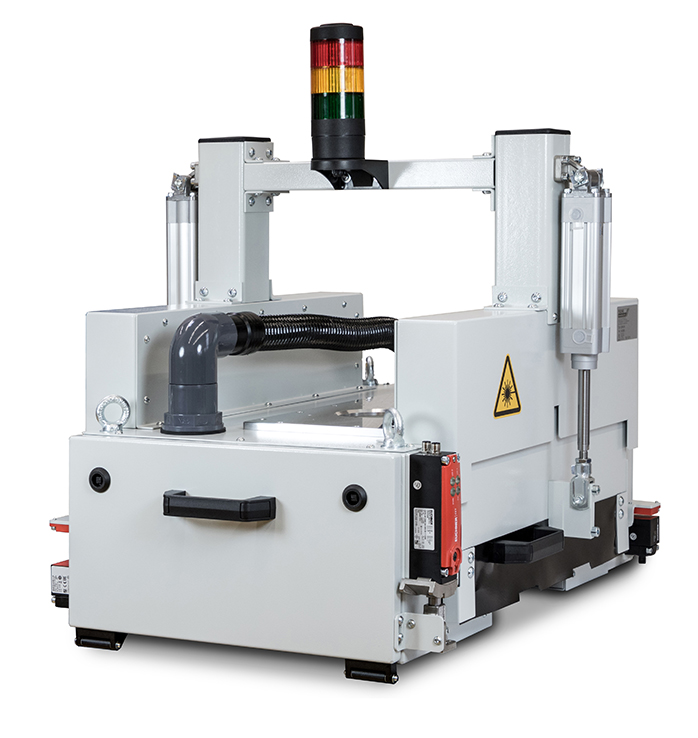

The laser protection booth: Close the door, turn on the laser and be safe
![](/assets/new2022/img/product/sonderanlagen/17_LSKA04_2019_58A3490_a.jpg?m=1658161695)
LSKA04 –
properties
- Laser class 4
- High-quality version with 2 mm sheet-metal modules in single-wall version, Performance Level D
- With 2 pneumatic lift doors, non-contact limit switch PL D
- Side maintenance hatch
- Signal lamp for operating states
- Integration roller track section/cover track for light-tight version
- Wiring to terminal box for connection to PLC
LSKA04 –
handling
- Easy assembly on base frame

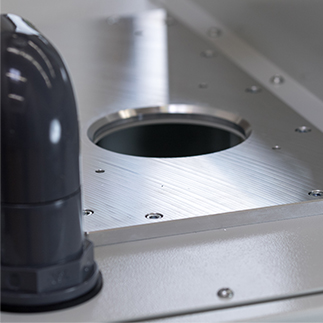

- Port for extraction point with suction nozzle and hose
- Combinable with many extraction and filtering devices
![](/assets/new2022/img/product/sonderanlagen/17_LSKA04_2019_uL.jpg?m=1658161695)
![](/assets/new2022/img/product/sonderanlagen/17_LSKA04_2019_uR.jpg?m=1658161695)
